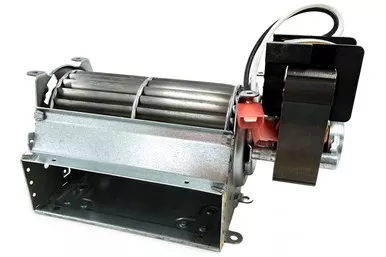

Aftermarket 228-10086 right-side Travis, Avalon, Lopi replacement blower for 31/33 DVI GSB2, DVL/DVS (EFII, GSR2) gas fireplaces. New part 250-06966. Blower is made in the USA and features 100% ball bearing construction, high temp bearings, zero shaft play, improved air flow and quiet. Blower is secured to a mounting bracket with sheet metal screws and is isolated from metal on metal contact by rubber feet. Original bracket must be kept for the new replacement blower.
If you’re installing a blower for the first time, a blower kit may be required. Replacement blowers are intended to replace worn or defective blowers and do not include the components of a full blower kit.
Product Details
| Specifications | |
|---|---|
| Dimensions | |
| L x W x H | 8.0″ x 3.73 x 3.23″ |
| Air Discharge | 4.75″ x 1.5″ |
| Blower, Motor & Bearing | |
| Type | AC Shaded Pole |
| Rotation | CW |
| Blade Type | Metal |
| Housing Material | Aluminum |
| Bearing Type | Ball |
| Outboard Bearing Type | Ball |
| Bearing Lubrication | High Temp |
| Motor Insulation | Class H (rated to 392°F) |
| Motor RPM | 3000 |
| Motor Connection | Male spade terminals |
| Motor Orientation | Clocked, spades bent upwards |
| Variable Speed Compatible | Yes |
| Air Flow | |
| CFM | 90 |
| Installation | |
| Mounting Type | Mounts directly to OEM bracket assembly, rubber isolation feet |
| Electrical | |
| Volts | 120 |
| Motor Frequency | 60 Hz |
| Watts | 75 |
| Amperage | 0.63 |
| Wiring Connection | Wire whips (black and white leads) |
| Wiring Length | 6″ |
| Wire Connector Type | 1/4″ insulated male terminals |
| Accessories | |
| Cross Support Brace | N/A |
| Noise Reduction Padding & Velcro | Rubber grommets (not included) |
| Other | |
| Packaging Materials | Shipping box, bubble wrap, foam |
| Compatibility | |
| Avalon, Lopi, Travis | 31/33 DVI GSB2, DVL/DVS (EFII, GSR2) |
| Fan Kits | |
| Documents | |
| Installation Instructions | Not Available |
| Video Library | Not Available |
Benefits of Adding a Fireplace Blower
- Improves fireplace efficiency by as much as 80%
- Helps reduce costly energy bills
- Heats large rooms effectively
- Installs quickly and easily
- Affordable and efficient
Included With Purchase
- Right side replacement blower (bracket not included)
- Manufacturer’s warranty
Also Known As
- 228-10086
- 250-06154 RT
- 250-06966
