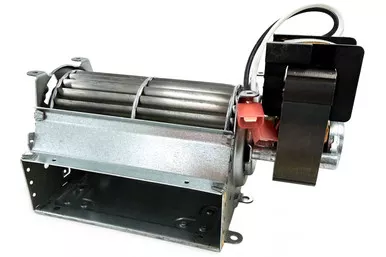

Aftermarket 250-00032 right-side Travis, Avalon, Lopi replacement blower for 864TRV GS – 564 SS GS gas fireplaces. Blower is made in the USA and features 100% ball bearing construction, high temp lubrication, zero shaft play, improved performance and quiet. Blower is secured to the original OEM mounting bracket with sheet metal screws and is isolated from metal on metal contact by isolating rubber feet that are attached to the blower assembly. Original bracket must be retained for re-installation of new blower. OEM blower and brackets are pictured for reference. 100% ball bearing replacement blower, quiet and long-lasting.
If you’re installing a blower for the first time, a blower kit may be required. Replacement blowers are intended to replace worn or defective blowers and do not include the components of a full blower kit.
Product Details
| Specifications | |
|---|---|
| Dimensions | |
| L x W x H | 8.0″ x 3.73″ x 3.23″ |
| Air Discharge | 4.75″ x 1.5″ |
| Blower, Motor & Bearing | |
| Type | AC Shaded Pole |
| Rotation | CW |
| Blade Type | Metal |
| Housing Material | Aluminum |
| Bearing Type | Ball |
| Outboard Bearing Type | Ball |
| Bearing Lubrication | High Temp |
| Motor Insulation | Class H (rated to 392°F) |
| Motor RPM | 3000 |
| Motor Connection | Male spade terminals |
| Motor Orientation | Clocked, spades bent upwards |
| Variable Speed Compatible | Yes |
| Air Flow | |
| CFM | 90 |
| Installation | |
| Mounting Type | Mounts directly to OEM bracket assembly |
| Electrical | |
| Volts | 120 |
| Motor Frequency | 60 Hz |
| Watts | 75 |
| Amperage | 0.63 |
| Wiring Connection | Wire whips (black and white leads) |
| Wiring Length | 6″ |
| Wire Connector Type | 1/4″ insulated male terminals |
| Accessories | |
| Cross Support Brace | N/A |
| Noise Reduction Padding & Velcro | Rubber grommets (not included) |
| Other | |
| Packaging Materials | Shipping box, bubble wrap, foam |
| Compatibility | |
| Avalon, Lopi, Travis | 864TRV GS, 564 SS GS, 564 DF |
| Fan Kits | |
| Documents | |
| Installation Instructions | Not Available |
| Video Library | Not Available |
Benefits of Adding a Fireplace Blower
- Improves fireplace efficiency by as much as 80%
- Helps reduce costly energy bills
- Heats large rooms effectively
- Installs quickly and easily
- Affordable and efficient
Included With Purchase
- Replacement blower (bracket assembly not included)
- Manufacturer’s warranty
Also Known As
- 250000131 (left)
- 250-06966
