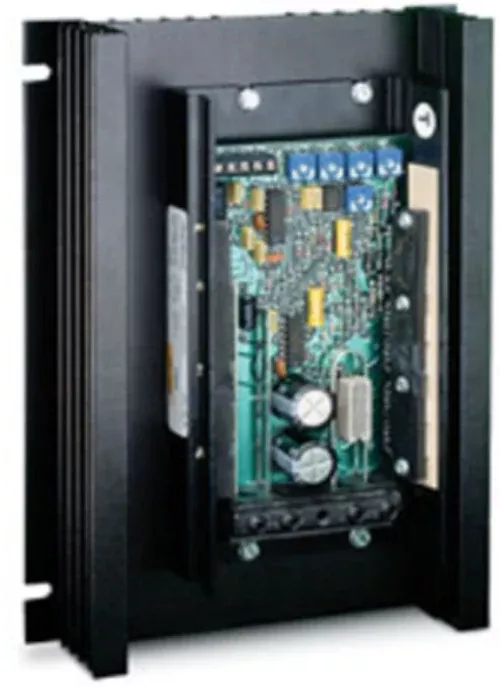

65E40, 65E Series DC Control 24/36VDC 40 AMPS Chassis
| Category | Specifications |
| Model | 6,50E40 |
| Series | – 65E Series |
| Drive Type | – Low Voltage PWM DC Motor Controller |
| Input Voltage | – 24-36 VDC |
| Output Voltage | – 0-Input Voltage |
| Continuous Current | – 40 Amps DC |
| Power Rating | – Up to 1,440 Watts |
| Motor Compatibility | – 24-36 VDC Permanent Magnet (PM) and Series Wound DC Motors |
| Control Features | – Pulse Width Modulation (PWM) for efficient motor control |
| Enclosure Type | – Open Chassis |
| Standard Features | – Speed potentiometer kit included |
| Applications | – Ideal for battery, solar, and portable equipment applications requiring higher power |
| Manufacturer | – Dart Controls |
