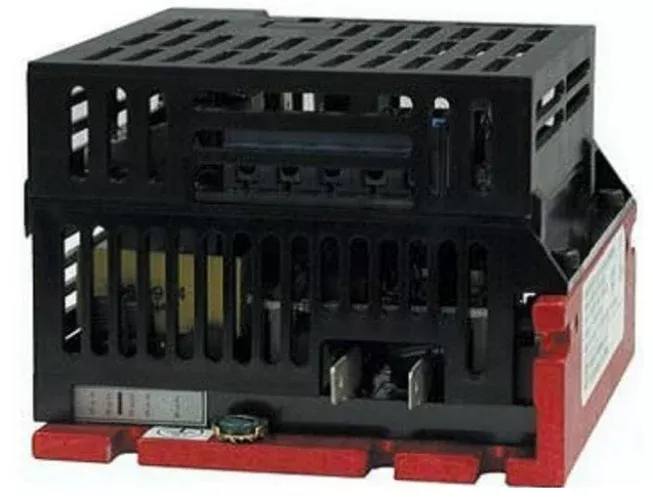

8833, KBMG Multi-Speed Board
| Specification | Details |
| Model / Part Number | 8833 (KBMG Multi-Speed Board) |
| Product Type | Multi-Speed Control Board |
| Compatible Drive | KBMG Series Regenerative Drives |
| Preset Speeds | Four (4) user-adjustable preset speeds |
| Speed Adjustment Method | Individual trimpots for each preset speed |
| Direction Control | Jumper-selectable forward/reverse for each preset |
| Speed Range Settings | Jumper-selectable ranges: 0–100%, 50–100%, 0–50%, 33–66% of base speed |
| Enable Function | Provides electronic Run/Stop control via enable input |
| Input Signal Type | Dry contact or open collector for preset selection and enable |
| Operating Temperature | 0°C to 50°C |
| Mounting | Plugs directly onto KBMG drive; secured with provided hardware |
| Dimensions | 3.80″ x 3.80″ x 0.95″ |
| Additional Features | – Barrier terminal block for easy wiring – Connector for tach-generator input – LED indicators for status |
