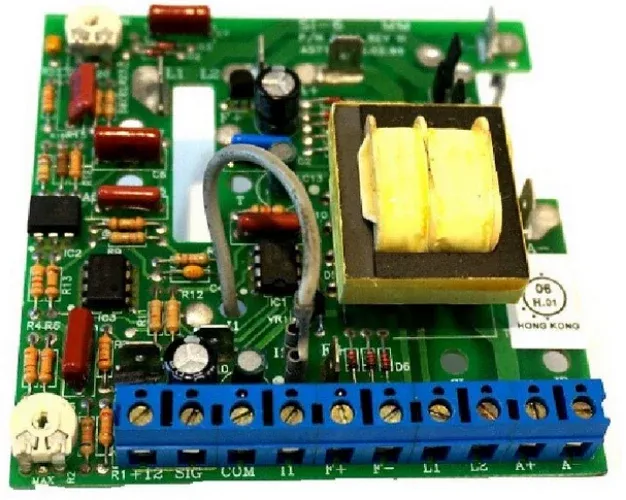

9444, KBMM SI-6 Signal Isolator
| Property | Specification |
| Model Number | 9444 |
| Name | KBMM SI-6 Signal Isolator |
| Function | Converts standard control signals to isolated input |
| Compatible Drive Series | KBMM series |
| Power Requirement | 115 or 230 VAC – 50/60 Hz |
| Input Signal Voltage Ranges | 0–5 V, 0–10 V, 0–100 V¹, 0–200 V² |
| Input Signal Current | 4–20 mA³ |
| Output Voltage | 0–10 VDC (max 11 VDC) |
| Maximum Output Current | 10 mA |
| MIN Trimpot Adjustment | ±3 VDC |
| MAX Trimpot Adjustment | 0–2× input voltage, max of 11 V |
| Signal Linearity | ±0.1%⁴ |
| Temperature Drift | 4 mV per °C |
| Adjustment Options | Built-in OFFSET, MIN, and MAX trimpots |
| Isolation Type | Optical isolation |
| AC Line Selection | Selectable jumpers for 115 or 208/230 VAC control compatibility |
| Mounting/Installation | Quick-connect terminals, mates directly to speed control |
| Purpose | Electrically isolates and adapts control signals |
¹²Requires external resistors.
³Selectable via jumper or configuration.
⁴Typical value.Our stock of KB Electronic accessories features a range of control periphery products from switch kits and fuse kits to replacement potentiometers and AC line filters. These products provide more functions and better performance to your KB Electronics AC and DC drives.
