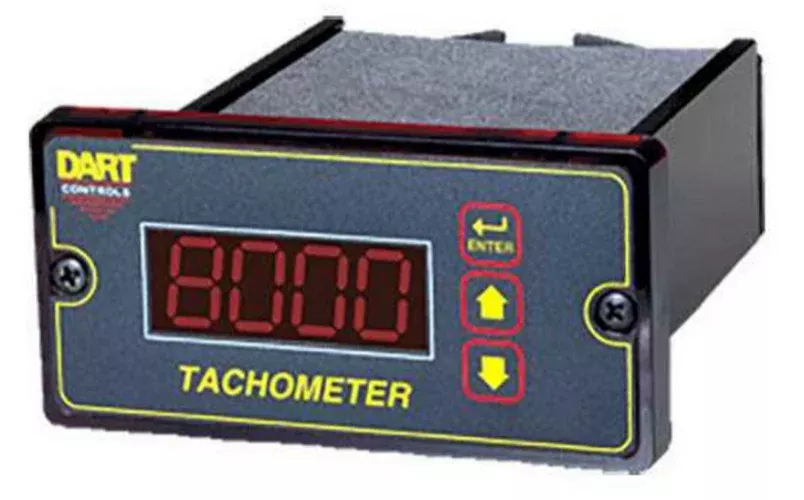

DM8000, Digital Tachometer, 1/8 DIN, 120/240VAC, Programable
KEY FEATURES
• Type: Field-programmable digital tachometer
• Technology: Microprocessor-based
• Speed Range: Measures shaft speeds as low as 1 RPM
• Accuracy: ±0.4%
• Display: 1/2″ digital display, 1/8 DIN housing
• Input Range: 500 to 30,000 input pulses per minute
• Enclosure Rating: NEMA 4X (with faceplate gasket kit and compatible enclosure)
• Outputs: 5A Form C relay output
• Functions: Displays rate, RPM, time, count, and total
• Power Supply: Universal — one model supports both 120VAC and 240VAC input
• Warranty: 1 Year
The DM8000 is an economical microprocessor-based digital tachometer system capable of measuring shaft speeds lower than 1 RPM. The display is field programmable via the easy- to-use front panel interface. Large 1/2 inch 4-digit LED display numbers allow viewing under the most adverse conditions. The DM8000 is actually four devices in one: • Tachometer • Counter • Totalizer • Zero Speed Switch
The isolated 5 Amp form C relay output may be configured for many alarm, preset count and logic conditions. A single device may be shared by two speed inputs and the displayed toggled – saving cost and space.
