Fronius Ambient Temperature Sensor PT1000 | 43,0001,1188
The Fronius Ambient Temperature Sensor 43,0001,1188 provides temperature monitoring for Fronius PV system monitoring applications. With a wide measuring range of -40°F to 356°F (-40°C to 180°C), it can be used to measure both outdoor ambient temperature and indoor room temperature.

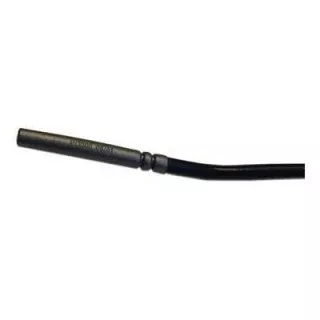

The sensor uses a PT1000 sensing element housed in a compact stainless-steel cylindrical enclosure. It includes a 3-meter silicone-insulated copper cable with ferrules and supports a maximum sensor-to-Sensor Card/Box distance of 20 meters.
Key Features
- Measures ambient outdoor or indoor temperature
- PT1000 temperature sensor
- Wide -40°C to +180°C (-40°F to 356°F) measuring range
- Stainless-steel cylindrical sensor housing
- Compact 50 mm x 6 mm design
- Includes 3-meter copper cable
- Silicone-insulated cable with ferrules
- Supports cable runs up to 20 meters between the sensor and Sensor Card/Box
- Simple installation with no special mounting hardware required
- Suitable for placement underneath PV modules for ambient temperature measurement
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Fronius |
| Product | Ambient Temperature Sensor |
| Fronius Part Number | 43,0001,1188 |
| Sensor Type | PT1000 |
| Measuring Range | -40°C to +180°C (-40°F to 356°F) |
| Accuracy | ±0.8°C from -40°C to 100°C |
| Accuracy (Imperial) | ±1.5°F from -40°F to 212°F |
| Housing | Cylindrical stainless steel |
| Sensor Dimensions | 50 mm length x 6 mm diameter |
| Cable Length | 3 m |
| Cable | Copper, 2 x 0.5 mm, silicone insulated, ferrules |
| Maximum Cable Distance | 20 m from Sensor Card/Box to sensor |
Temperature Monitoring for PV Systems
Ambient temperature can provide useful environmental data alongside PV system performance information. The sensor’s broad operating range makes it suitable for installations exposed to both very cold and high-temperature conditions.
Fronius notes that the sensor does not require a special mounting structure and can, for example, simply be positioned underneath the PV modules.
Manufacturer: Fronius
MPN / Part Number: 43,0001,1188
Sensor: PT1000
Application: Ambient / room temperature measurement
