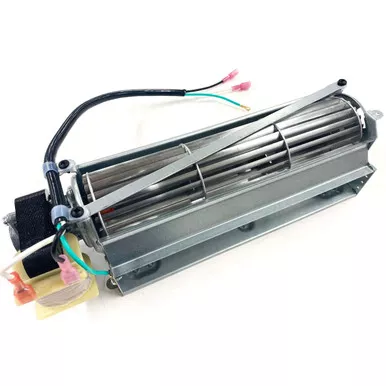

This aftermarket tangential style blower motor is designed to replace the right-side blower used on several older IronStrike wood-burning inserts. 100% ball bearing with quiet and fast flowing design. No oiling required. The tangential style of blower was used on the older IronStrike inserts and have been replaced with centrifugal blowers on the newer models.
Please note:
- This is NOT the full kit, so mounting brackets are not included. Listing is for blower motor replacement only.
For more information on the benefits of ball bearing blowers, read our How Does a Fireplace Blower Work? article.
Product Details
| Specifications | |
|---|---|
| Dimensions | |
| L x W x H | 12.5″ x 3.73″ x 3.23″ |
| Air Discharge | 9.57″ x 1.375″ |
| Blower, Motor & Bearing | |
| Type | AC Shaded Pole |
| Rotation | CCW |
| Blade Type | Metal |
| Housing Material | Steel |
| Bearing Type | Sealed Ball |
| Outboard Bearing Type | Sealed Ball |
| Bearing Lubrication | High Temp |
| Motor Insulation | Class H (rated to 392°F) |
| Motor RPM | 3000 |
| Motor Connection | Male space terminals |
| Variable Speed | Compatible |
| Air Flow | |
| CFM | 115 |
| Installation | |
| Mounting Type | Integrated mounting bracket, hardware included |
| Electrical | |
| Volts | 120 |
| Motor Frequency | 60 Hz |
| Watts | 35 |
| Amperage | 0.30 |
| Power Cord | Included |
| Power Cord Length | N/A |
| Power Cord Type | N/A |
| Accessories | |
| Cross Support Brace | N/A |
| Noise Reduction Padding & Velcro | Included, pre-installed on bottom of blower. |
| Other | |
| Packaging Materials | Shipping box, bubble wrap, foam |
| Compatibility | |
| IronStrike | Wood-burning inserts, F3222 (H8683) |
| Documents | |
| Installation Instructions | On Request |
Benefits of Adding a Fireplace Blower
- Improves fireplace efficiency by as much as 80%
- Helps reduce costly energy bills
- Heats large rooms effectively
- Installs quickly and easily
- Affordable and efficient
Read More
Included With Purchase
- 100% ball bearing blower motor replacement
- 1 year warranty
