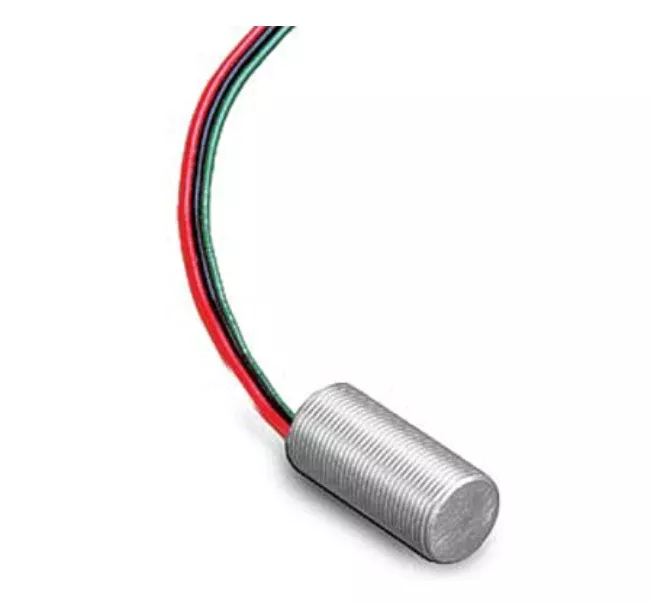

MPU-A, Hall-Effect Geartooth Pick-Up
KEY FEATURES
• Type: Hall-Effect Geartooth Pick-Up Sensor
• Function: Detects motion of ferrous gear-type targets and outputs a digital square wave signal
• Output: NPN open-collector, sinks up to 20 mA
• Supply Voltage: 4.5 to 24 VDC
• Operating Temperature: –40 °C to +125 °C
• Air Gap Tolerance: Larger operational air gap; works across wide target tooth size and spacing ranges
• Mounting: Cylindrical threaded aluminum housing; orientation-insensitive — can be mounted in any direction
• Installation Notes: Mount axis perpendicular to gear rotation; use shielded cable for noisy environments or long leads
• Durability: No additional conditioning needed; rugged design for hostile environments
• Compatibility: Fits Dart digital speed controls and tachometers; also usable in place of PU-E, OPU, or CF Series pickups when motor access is limited
