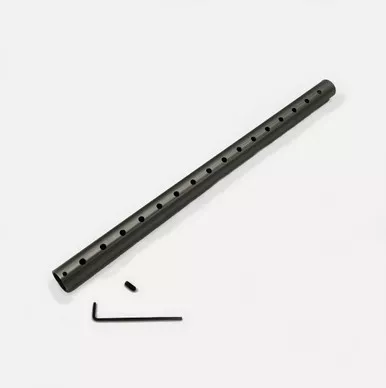

Regency R3 Wood Stove – Air Tube 030-953
To Replace Weld – In-Style Air Tube.
For use on the Regency R3 wood stove manufactured Sept 1987 – April 1992 Only
Dimensions: 1″ od x 17 1/8″
Procedure:
- Remove baffle plates from above the air tube(s)
- Remove old tube from stove by twisting air tube with a pipe wrench or vice grips to break spot weld.
- Install new tube(s) with air holes pointing toward the glass for a front tube or down toward the firebox floor for a middle tube.
- Use set screw to secure tube in place
- Replace baffle plates above the airtube(s)
Special Order Item – 2-3 weeks to ship.
