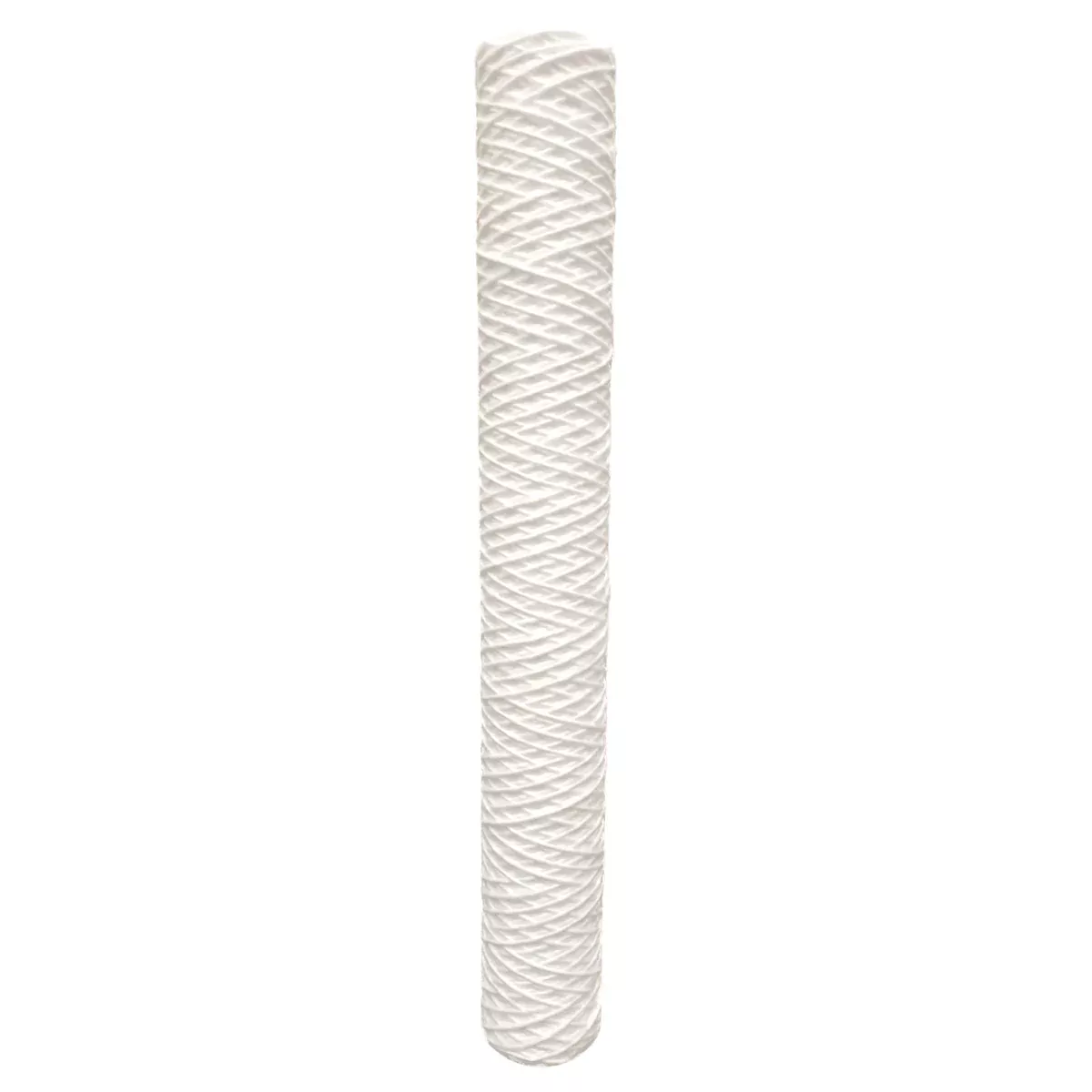

String Wound Filter 2.5″ x 20″ Sediment reducing (UP20R20P) 20 Micron
These polypropylene string wound filter cartridges are manufactured using state of the art computerized production machinery that takes the variables out of custom winding and enables production of filter cartridges that are accurately wound from a single strand of specially selected fibrous roving material, wound around a perforated core in a nearly perfect geometric pattern. The result is higher dirt-loading capacity and greater efficiency than standard wound cartridges.
- Drinking water treatment
- Pre-filtration for UV and R.O.
- Residential and commercial sediment removal
- Chemical resistant
- Filter media: 100% polypropylene
- Flow Rates (max): 15 GPM – flow rates vary with line size, pressure and micron rating.
- 20 Micron
- Core: Polypropylene
- End cap: None required
- Outer diameter: 2.5″
- Fits all 20″ Slim By 2.5″ housings for 2.5″ x 20″ filters
- Maximum operating temperature: 140° F
- Maximum differential pressure: 50 PSI at 68° F
- Recommended change-out at 7 psi drop or 6 months
- Made in North America
- DIRECT COMPATIBLE REPLACEMENT FOR :
| American Meltblown | WE30S5E |
| Cardinal Process | W-P-20-R-20-P |
| Cardinal Process 2 | WE-P-20-R-20-P |
| Cardinal Process 3 | WWX-P-20-R-20-P |
| Delta Pure | DW-20-03-20-1-D |
| Facet | U20P20P |
| Filter Factory | FEP20R20P |
| FilterCor | FCP20R20P |
| Fluid Filtration | P20R20P |
| FSI | CWPOI020P20 |
| FWI | P20A20P |
| Mahle | 2EWPU20 |
| Matrix | P20A20P AXP20A20P XP20A20P |
| Murdock | MWP20A20P |
| Neo-Pure | WPP-25200-20 |
| Pall DFT | P020AW20U |
| Pall Encore | 20P20U |
| Parker | SWC20L20A |
| Parker Honeycomb | T13R20A |
| Parker XTL | XTL20L20A |
| PecoFacet | PFIP20R20P |
| Reco Filtration | WE20S5E |
| Serfilco | 20U20U |
| Shelco | MS20PP20 |
| United | UP20R20P |
