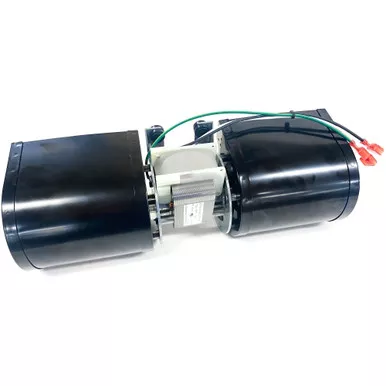

Replacement convection blower for older Waterford Emerald wood inserts. The wheel housings are clocked / rotated in a specific way for these older model inserts. The blower was often referenced as part 35 in some of the older manuals.
Benefits of Adding a Fireplace Blower
- Improves fireplace efficiency by as much as 80%
- Helps reduce costly energy bills
- Heats large rooms effectively
- Installs quickly and easily
- Affordable and efficient
Read More
Included With Purchase
- 100% ball bearing replacement blower
- Integrated mounting brackets
- Rubber grommets
- 2 wire electrical leads (black, white), green ground
- 1 year warranty
Please note: power cord is NOT included with this replacement blower.
If you’re installing a blower for the first time, a blower kit may be required. Replacement blowers are intended to replace worn or defective blowers and do not include the components of a full blower kit.
For more information on the benefits of ball bearing blowers, read our How Does a Fireplace Blower Work? article.
Product Details
| Specifications | |
|---|---|
| Dimensions | |
| L x W x H | 12.80″ x 4.5″ x 4.25″ |
| Air Discharge | 4.75″ x 1.0″ |
| Blower, Motor & Bearing | |
| Type | AC Shaded Pole |
| Rotation | CW / CCW |
| Blade Type | Composite |
| Housing Material | Steel powder coated black |
| Bearing Type | Ball |
| Outboard Bearing Type | N/A |
| Bearing Lubrication | High Temp |
| Motor Insulation | Class B |
| Motor RPM | 3000 |
| Motor Connection | Black/White wire motor leads. Green grounding wire |
| Variable Speed Compatible | Single Speed, variable speed compatible |
| Air Flow | |
| CFM | 180 CFM |
| Installation | |
| Mounting Type | Free standing, bracket has 4 rubber grommets that are attached to bracket. 2 additional side posts and rubber grommets for securing blower to fireplace. |
| Electrical | |
| Volts | 115 |
| Motor Frequency | 60 Hz |
| Watts | 184 |
| Amperage | 1.6 |
| Power Cord | Not included |
| Power Cord Length | N/A |
| Power Cord Type | N/A |
| Accessories | |
| Noise reduction | (6) rubber isolation feet |
| Other | |
| Packaging Materials | Shipping box, bubble wrap, foam |
| Compatibility | |
| Waterford / Regency | Waterford Emerald Inserts – Fits Older Models |
| Documents | |
| Installation Instructions | On Request |
| Video Library | Not Available |
Also Known As
- Part 35 in older manuals
